WLD-1394A

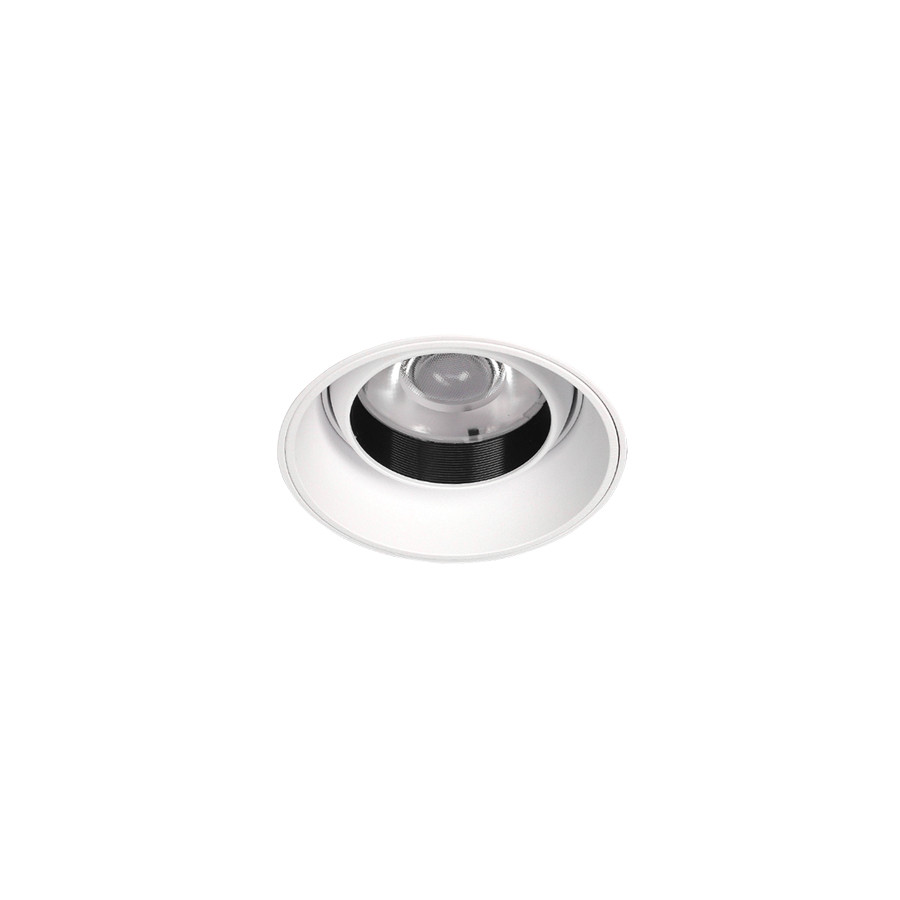

품명 : 트림리스 앵글 렌즈 COB
■ SPECIFICATION

Type of LED : COB

Material : AL. Die-casting

Reflector : LENS

Heat Sink : AL. Extrude

Input Voltage : 220~240V AC, 50~60Hz

Output Power(Current) : 20W(500mA) / 30W(700mA)

Output Voltage : 36V DC

Color Temperature : 2700K/3000K/3500K/4000K/5700K

Beam Angle : 15D, 24D, 36D, 60D

Color Rendering Index : ≤80, ≤90

Operating Temperature Range : -20 to +40℃

Driver : Constant current LED driver

Custom Option : Triac / (0)1-10V / DALI /Wireless Dim.

Body color :​  White, Black

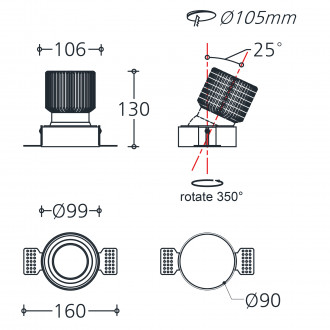

■ DRAWING
