상품간략정보 및 구매기능

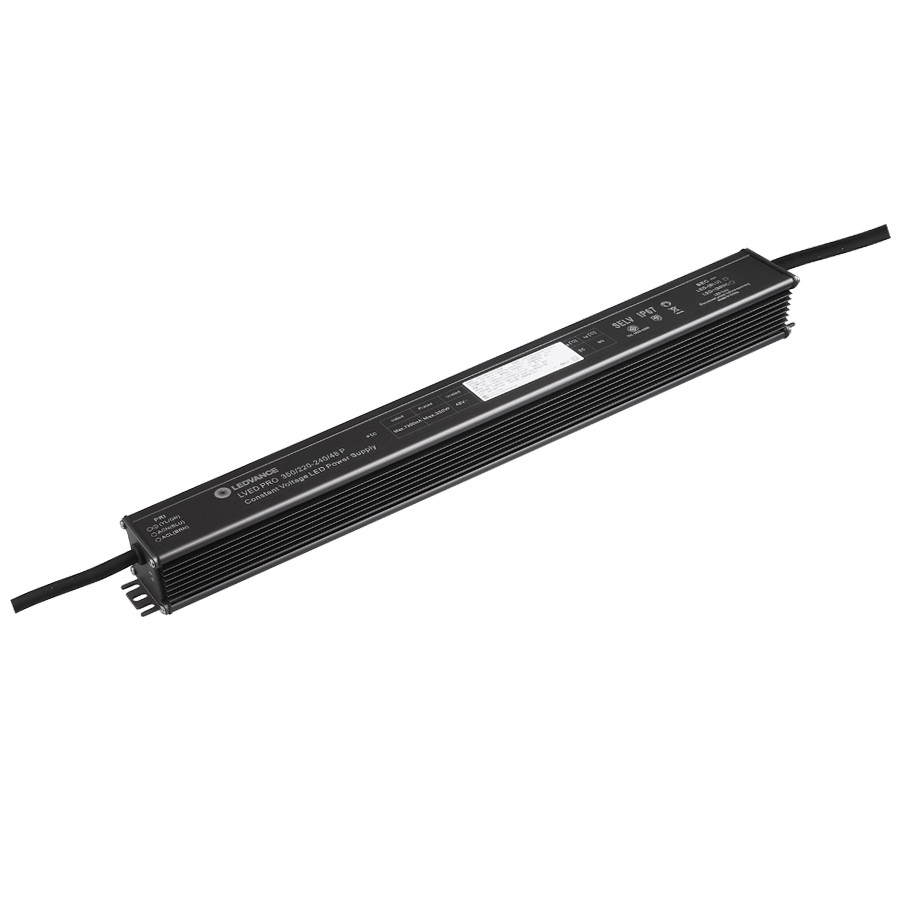

LVED Pro 350/220-240/240/48P
품명 : 정전압 350W/48V SMPS (방수형)
■ SPECIFICATION

LVED Pro 350/220-240/240/48P


Rate Input Voltage : 220~240V AC

Input Current : 2,000mA

Input Wattage : max. 376W

Power Factor@full load : 0.95

No-Load Wattage : 1W

THD@full load : max. 10%

Max. Output Power : 350W

Output Voltage : 48V DC

Output Current : 0~7,300mA

Efficiency @full load : 93%

IP Rating : 67

Ta : -40~55​ °C

Tc_MAX : 90 °C

Housing material : Aluminum

Weight : 1100g

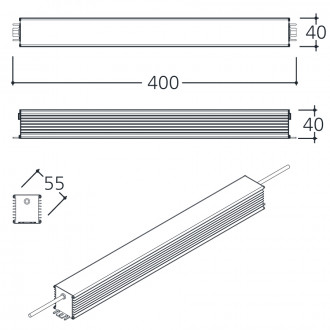

■ DRAWING
